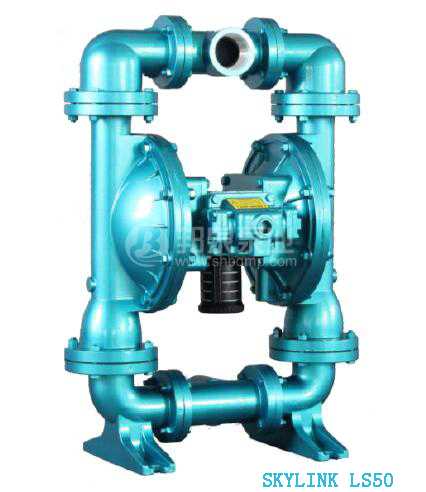

SKYLINK LS50 Air Drive Diaphragm Pump LS50氣動隔膜泵
LS50 Air Drive Diaphragm Pump LS50氣動隔膜泵常見型號
|
MODEL |
SIZE(DN) |
HOUSING MATERIAL |
INTERMEDIATE MATERIAL |
DIAPHRAGM MATERIAL |
VALVE SEAT MATERIAL |
VALVE BALL MATERIAL |
OTHER |
|
LS50 AA-AA-NE-PP-NE-00 |
50 |
AA |
AA |
NE |
PP |
NE |
00 |
|
LS50 AA-AA-T/N-TT-TT-00 |
50 |
AA |
AA |
T/N |
TT |
TT |
00 |
|
LS50 AA-AA- SP-SP-SP-00 |
50 |
AA |
AA |
SP |
SP |
SP |
00 |
|
LS50 SS-AA-NE-PP-NE-00 |
50 |
SS |
AA |
NE |
PP |
NE |
00 |
|
LS50 SS-AA-SP-SP-SP-00 |
50 |
SS |
AA |
SP |
SP |
SP |
00 |
|
LS50 SS-AA-T/N-TT-TT-00 |
50 |
SS |
AA |
T/N |
TT |
TT |
00 |
|
LS50 CS-AA-T/N-TT-TT-00 |
50 |
CS |
AA |
T/N |
TT |
TT |
00 |
|
LS50 CS-AA- SP-SP-SP-00 |
50 |
CS |
AA |
SP |
SP |
SP |
00 |
|
LS50 CS-AA-NE-PP-NE-00 |
50 |
CS |
AA |
NE |
PP |
NE |
00 |

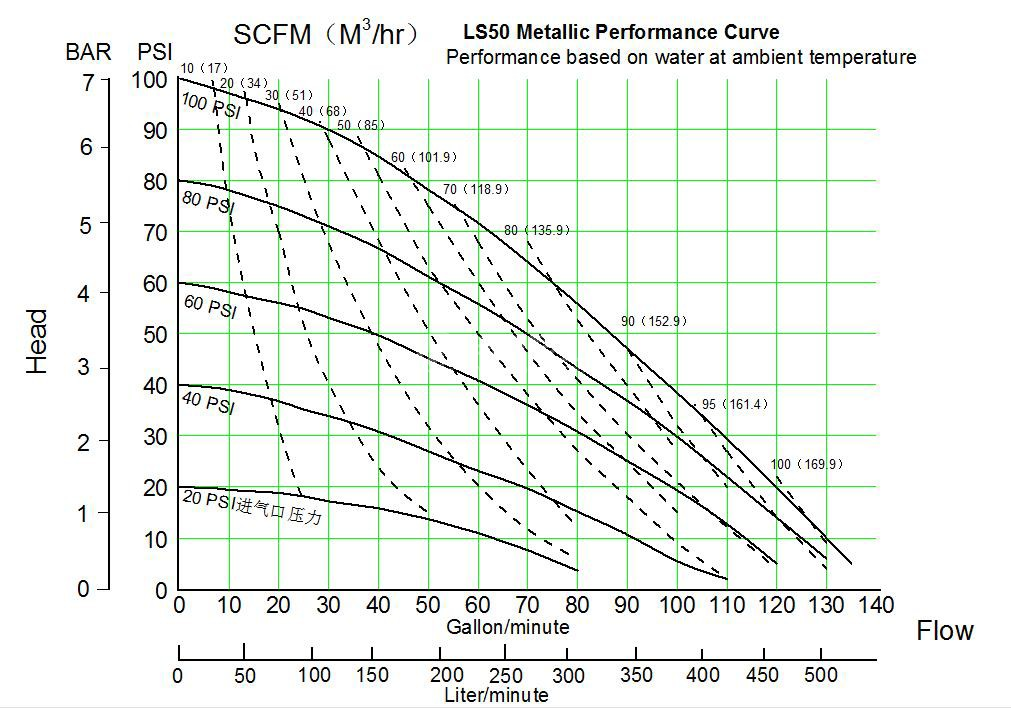

Performance 性能曲線
CAPACITY 流量及性能參數
Skylink Pumps are Designed to be Powered Only by Compressed Air
|
SUCTION/DISCHARGE |
CAPACITY |
AIR VALVE |
SOLIDS-HANDLING |
HEADS UP TO |
DISPLACEMENT |
WEIGHT(kg) |
|
|
Rc2"（可定做法蘭接口） |
511 lpm (max) 511 升/分鐘(最大) |
No-lube, no-stall |
3/8" / 9mm (max) |
125 psi / 8.6bar of water |
0.43gallon / 1.63 liter |
43(AL) |
73(CS/SS) |
